Aussie Traveller Curved Roof Rafter (CRR)
Description

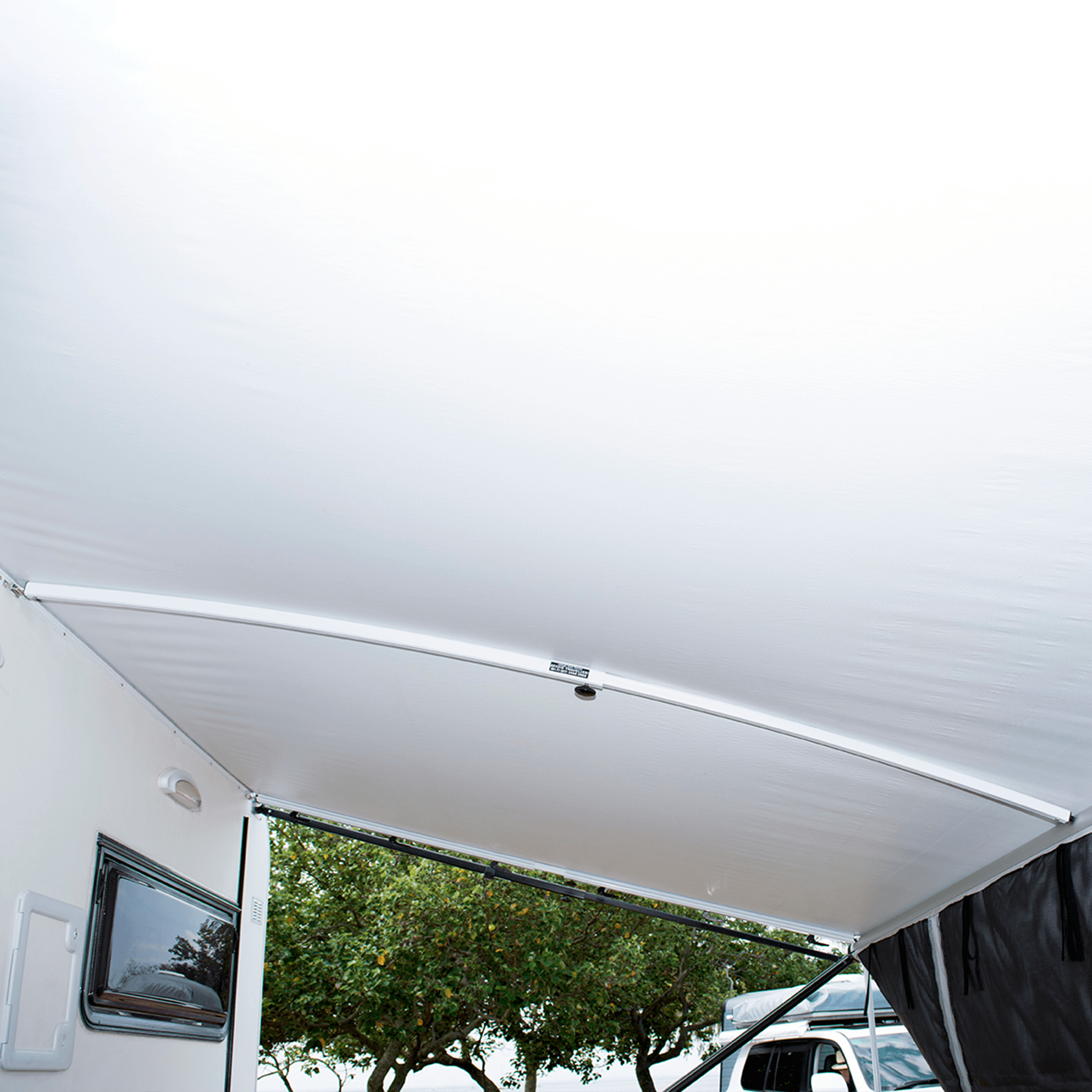

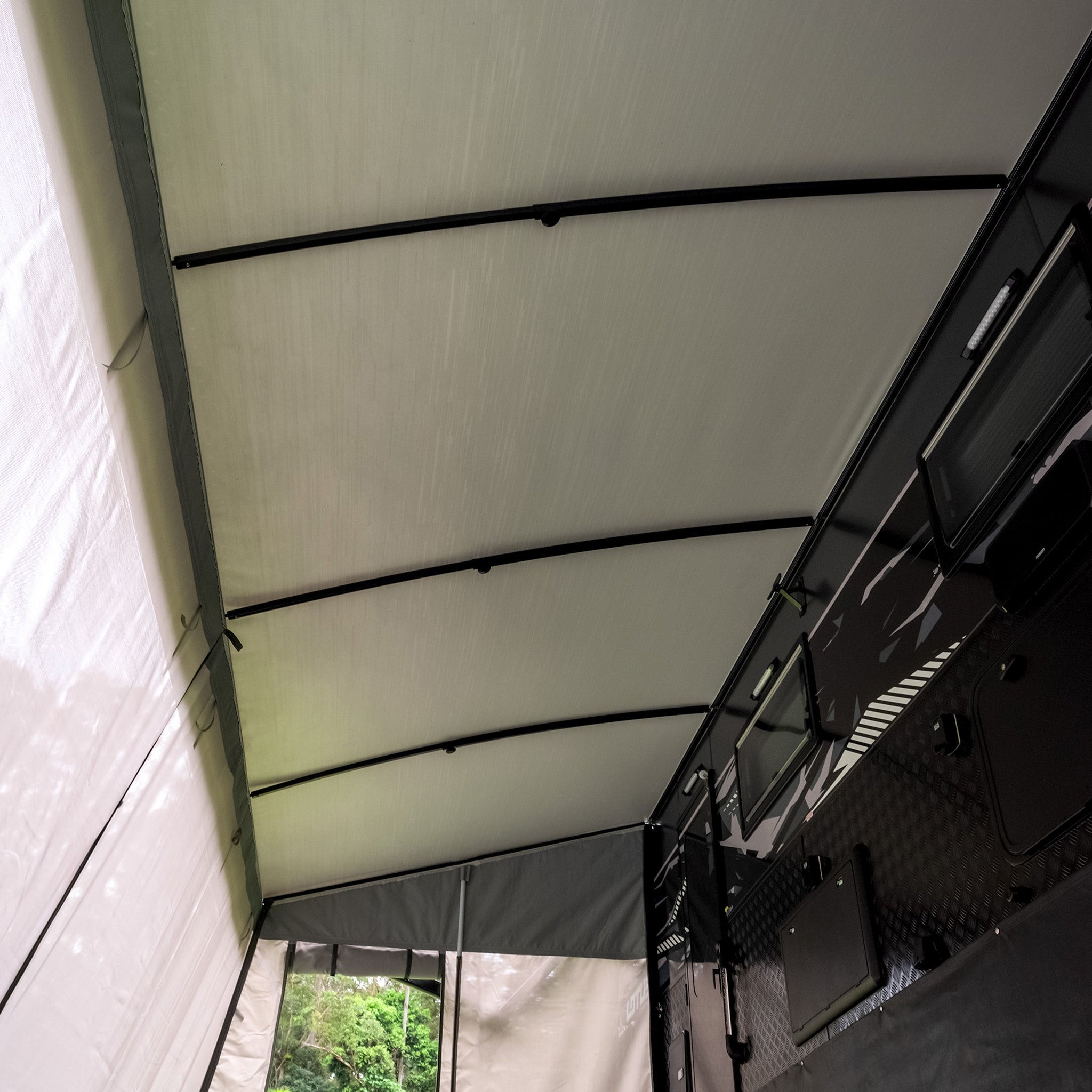

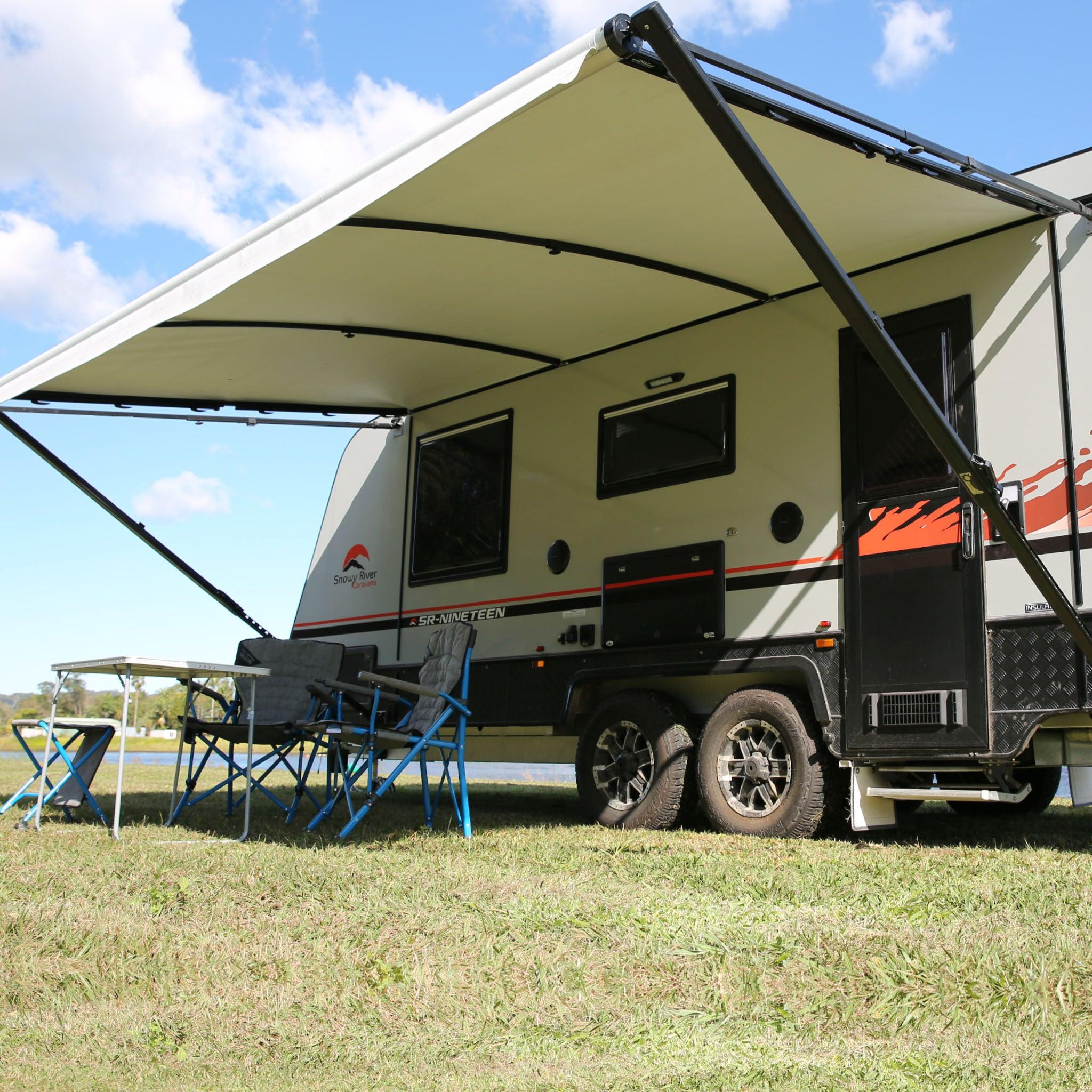

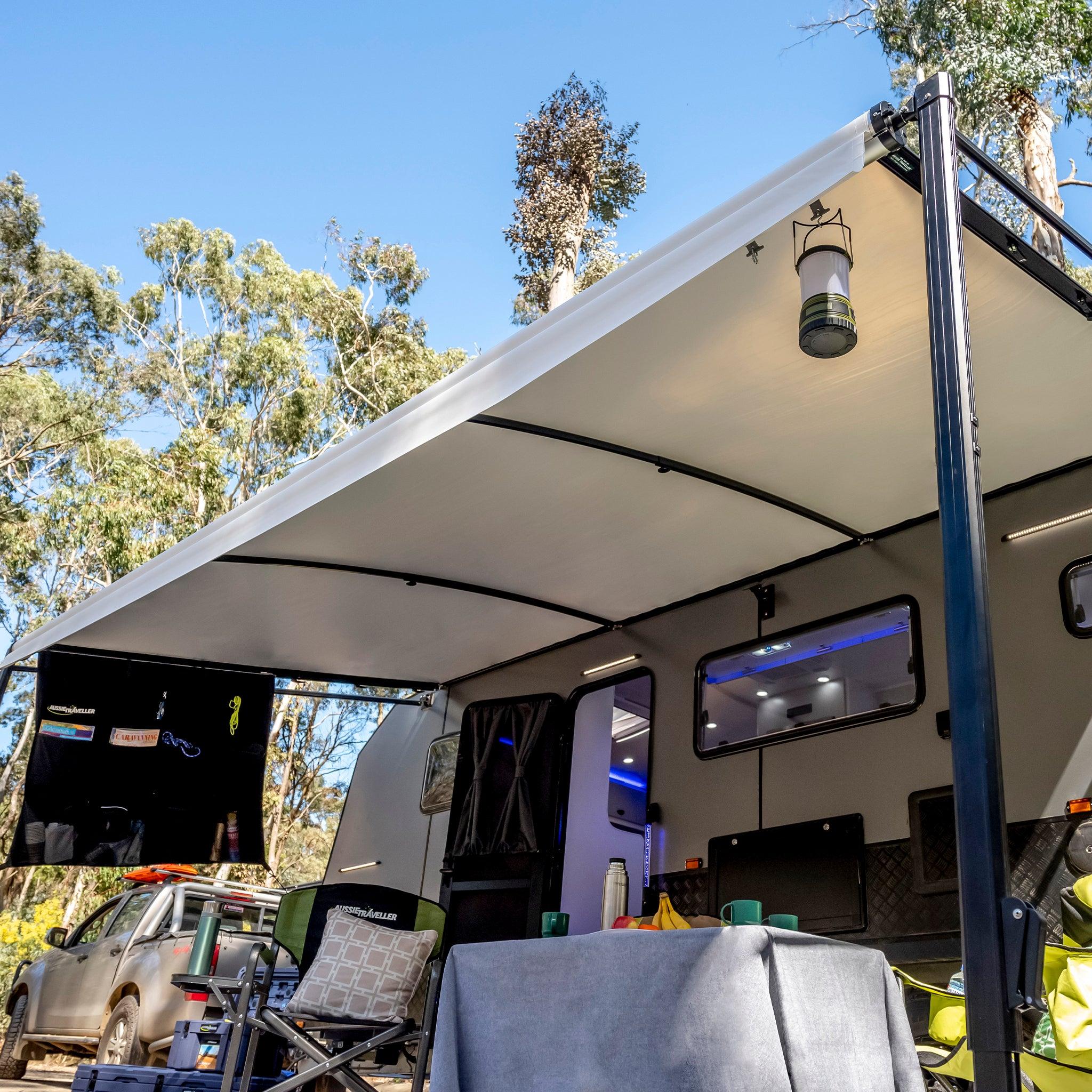

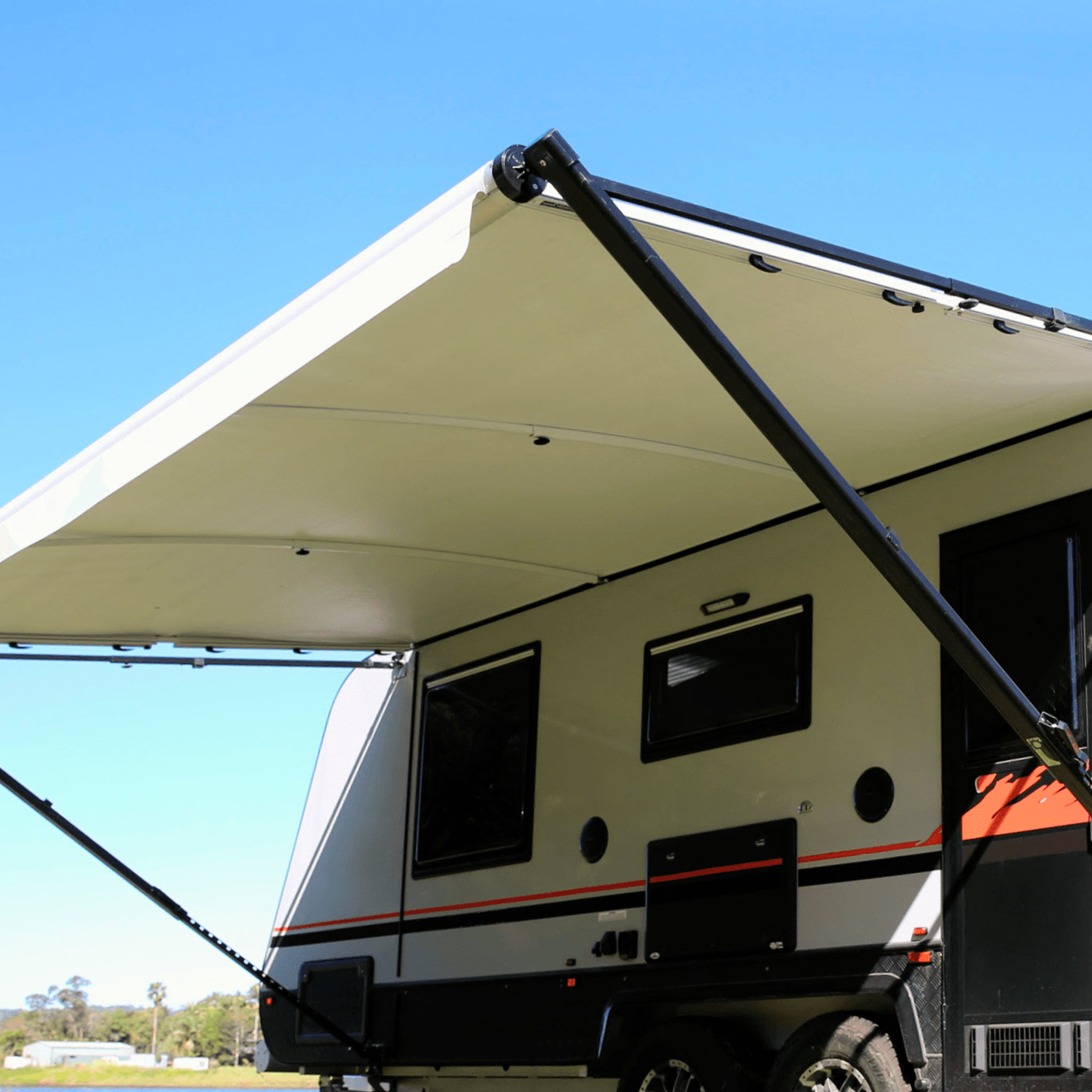

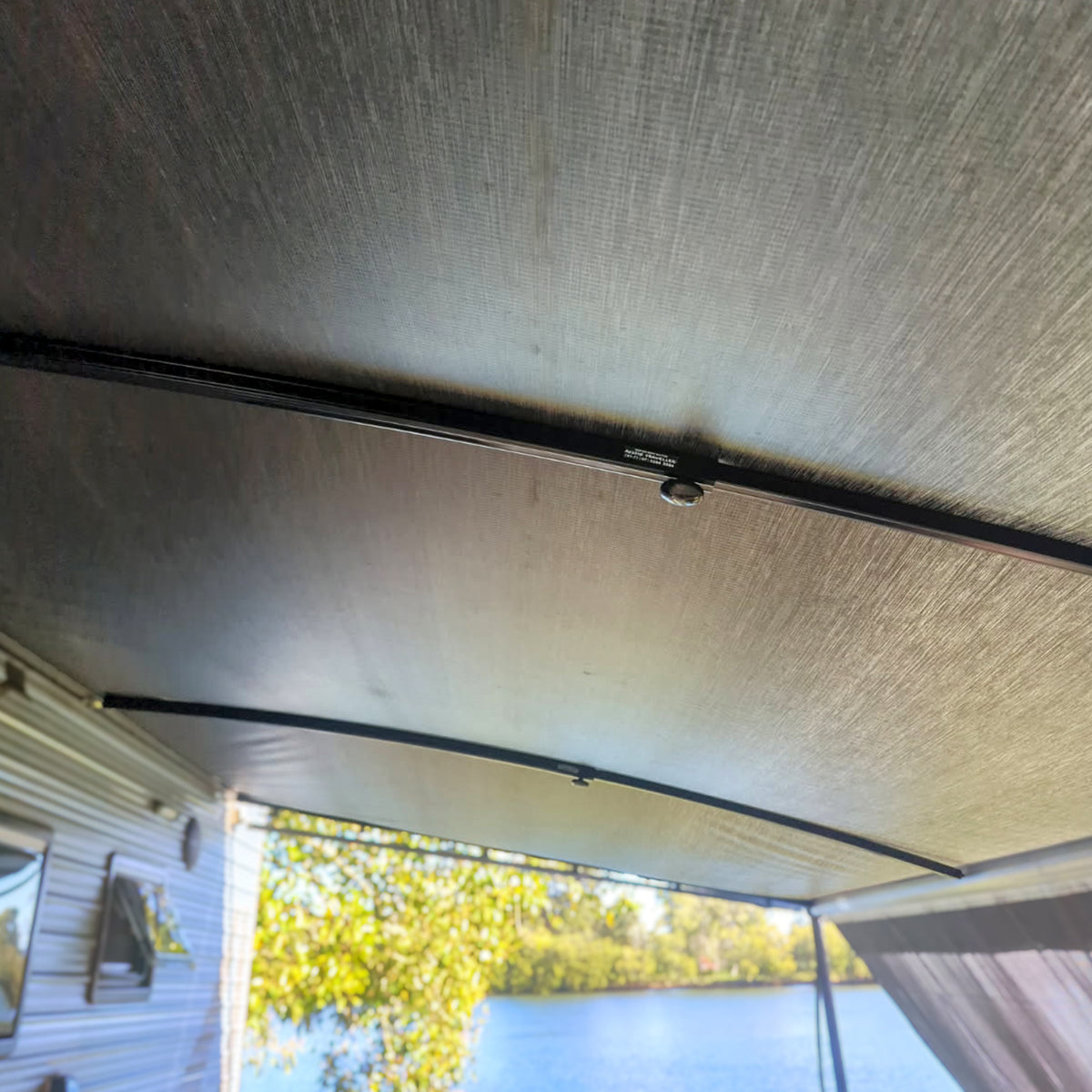

The Aussie Traveller Curved Roof Rafter (CRR) helps to prevent wind flap and sagging in the fabric of the awning and assists water run-off in the rain. The CRR pairs perfectly with the Aussie Traveller Anti-Flap Kit.

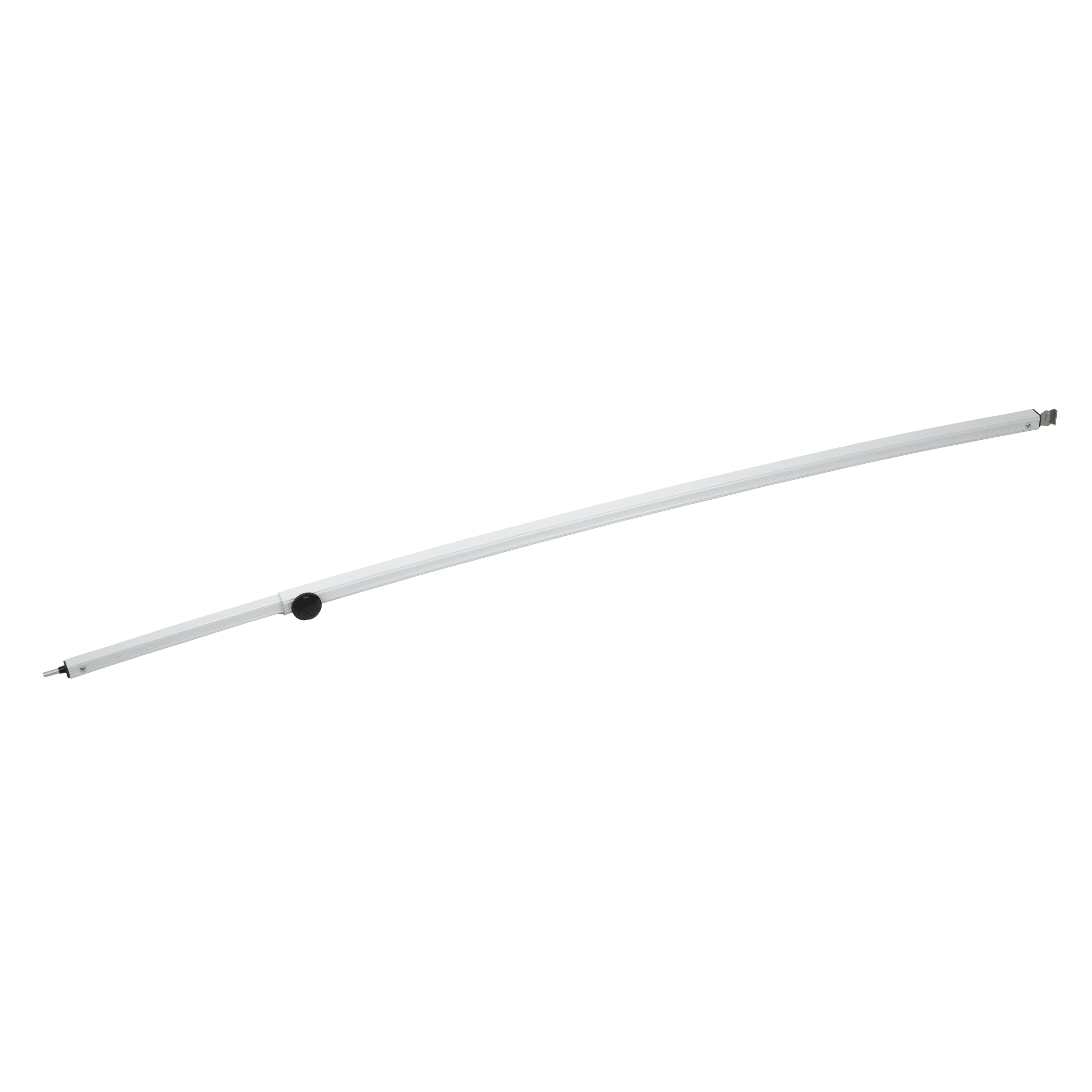

These high-quality Curved Roof Rafters are available in a Maxi Curve and a Mini Curve design, suitable for most rollout awnings.

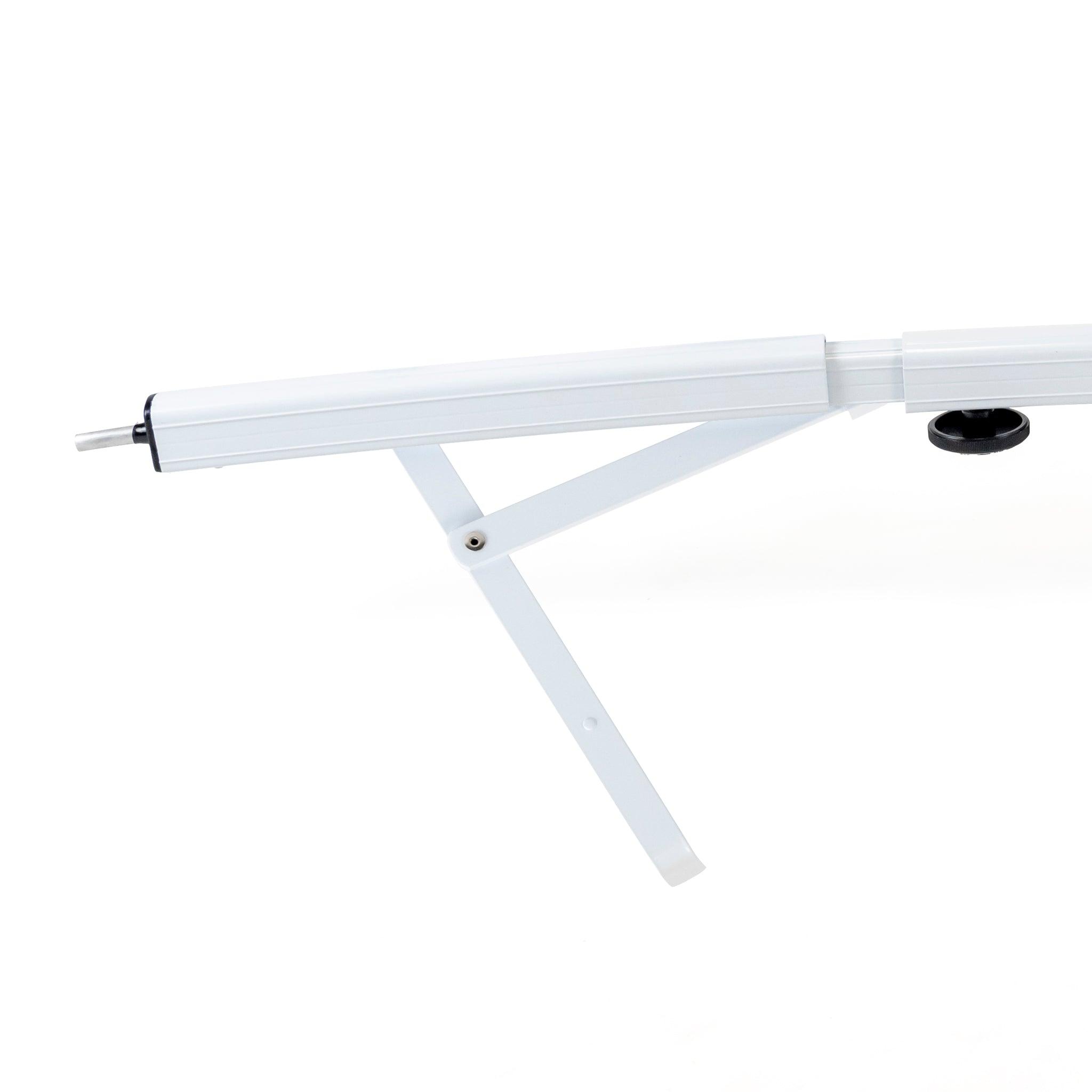

We also offer the Curved Tension Rafter. This design is a standard CRR fitted with a tension arm prevent longer awning roller tubes from bowing.
Refer to the Specifications below for sizing and measurement details.
Features:
- Available in 3 sizes.

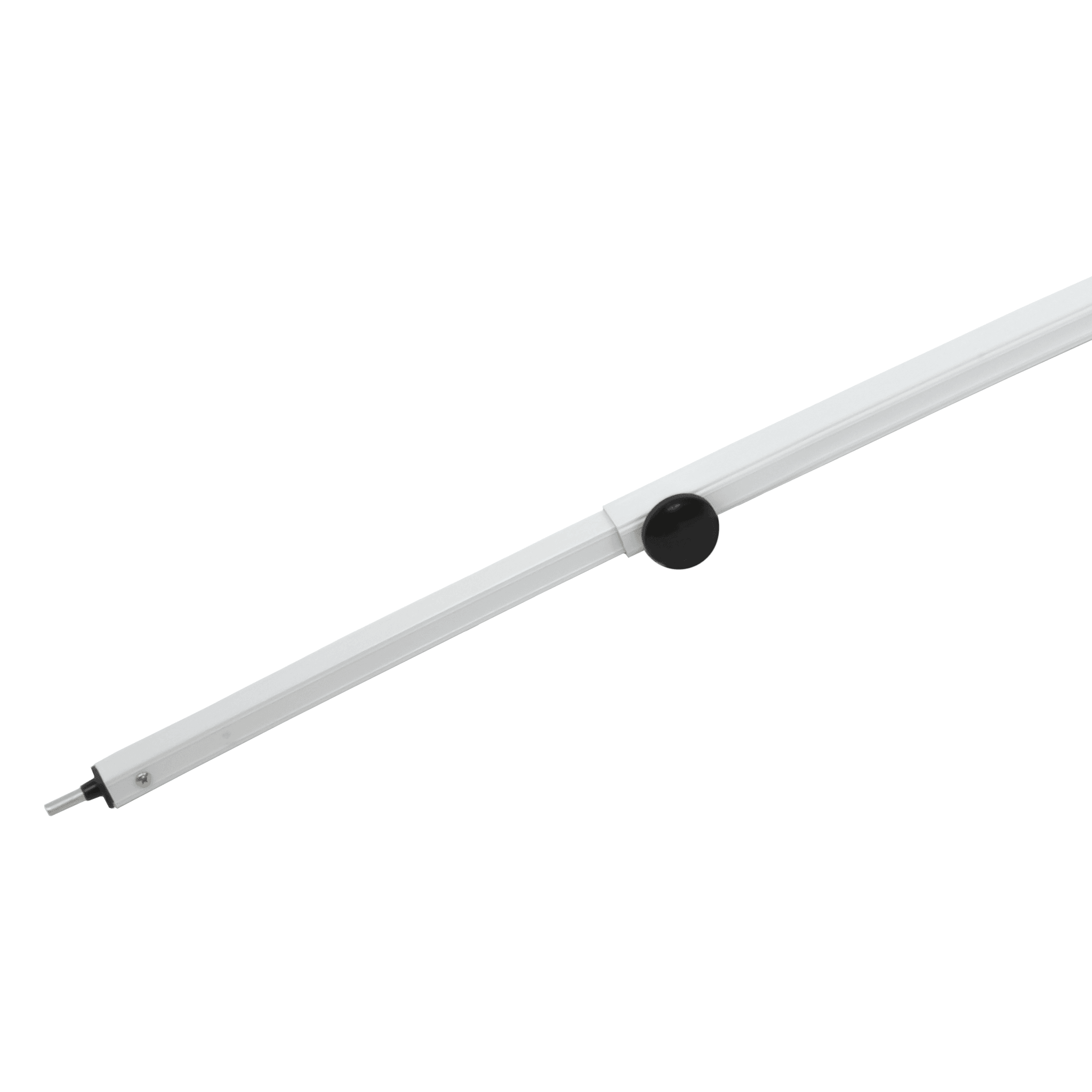

- All sizes available in White.

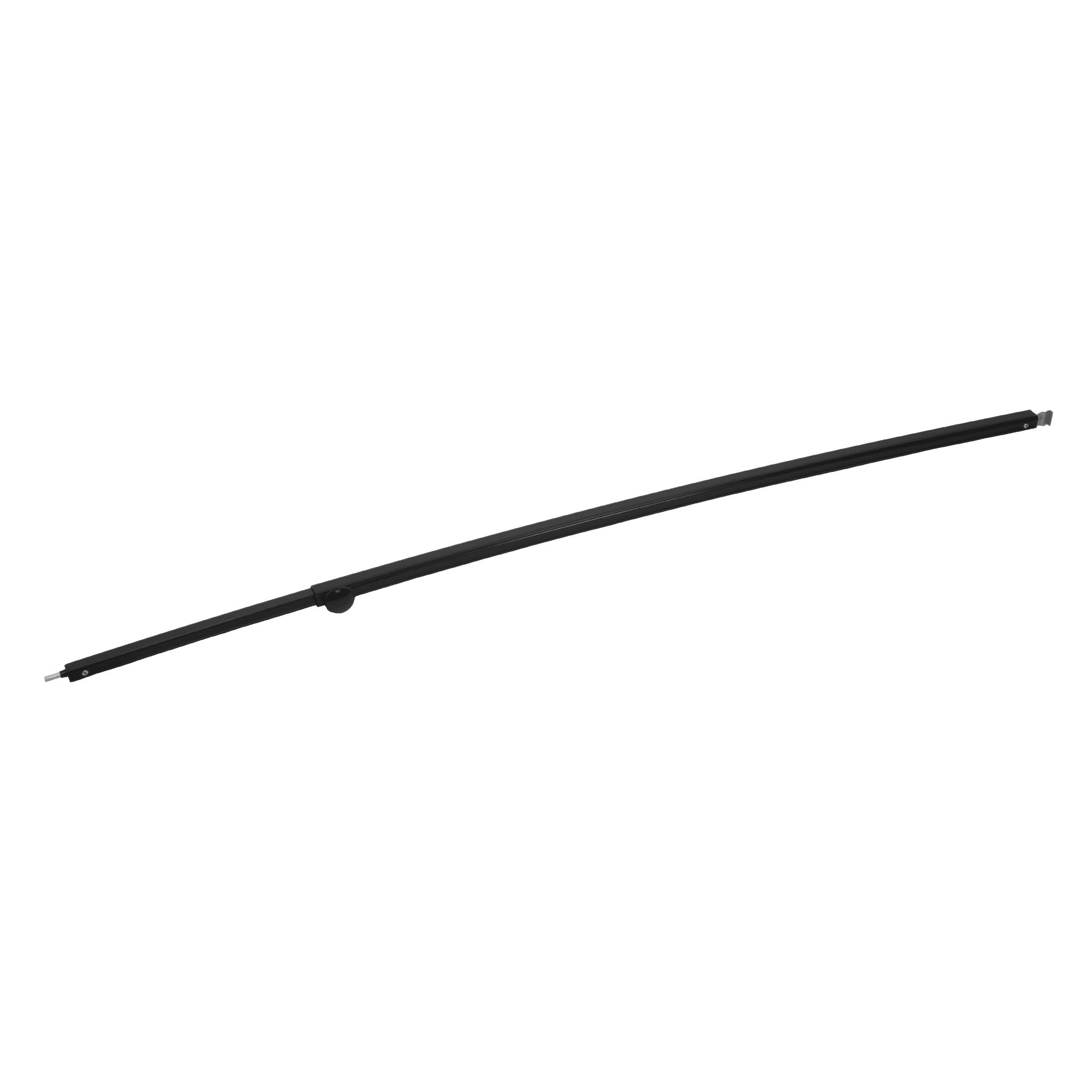

- Mini Curve Rafter available in White and Black.

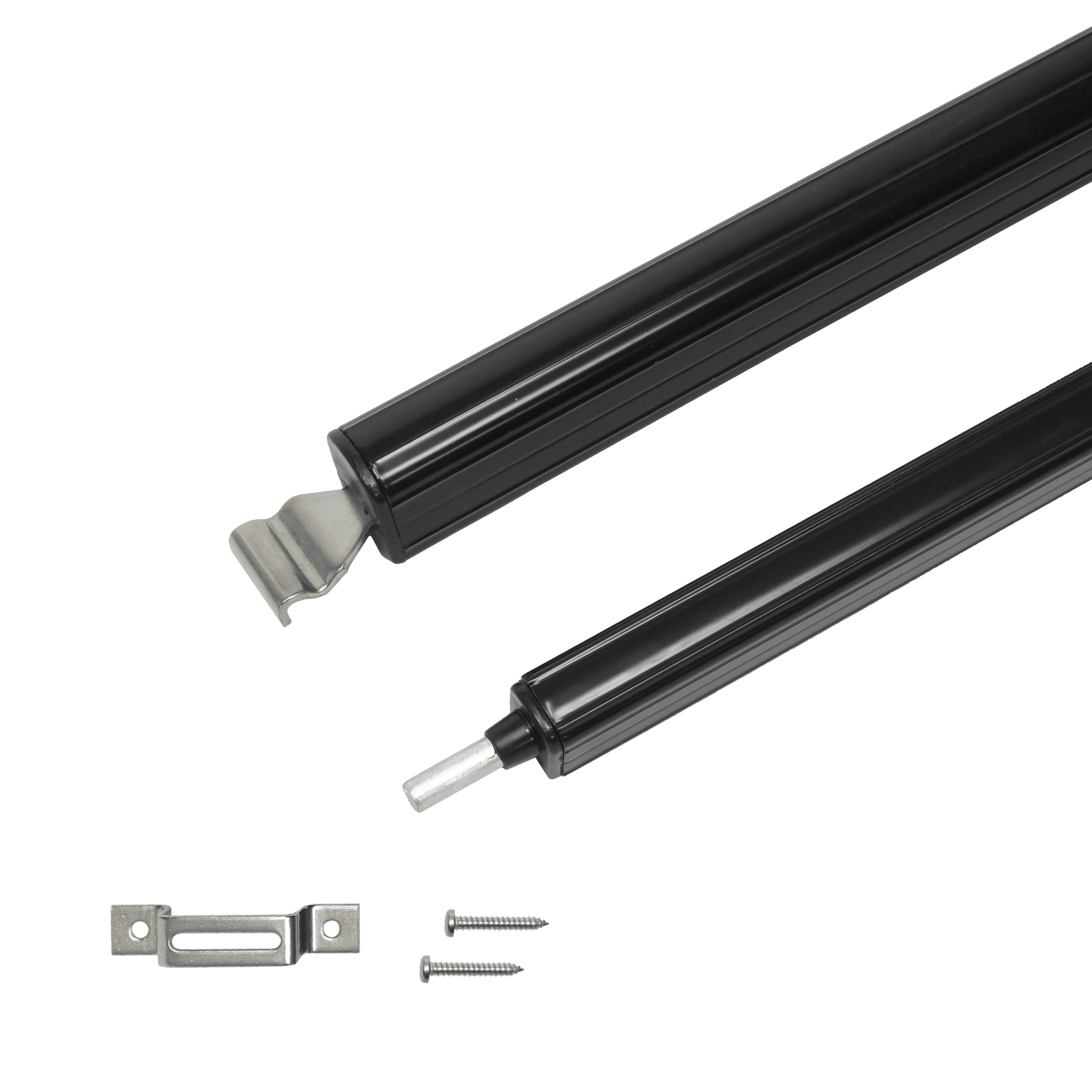

- Fitting brackets included.
- Suitable for most rollout awnings
For an easy storage solution for your CRR, you can purchase the Curved Roof Rafter Storage Bag.
Specifications

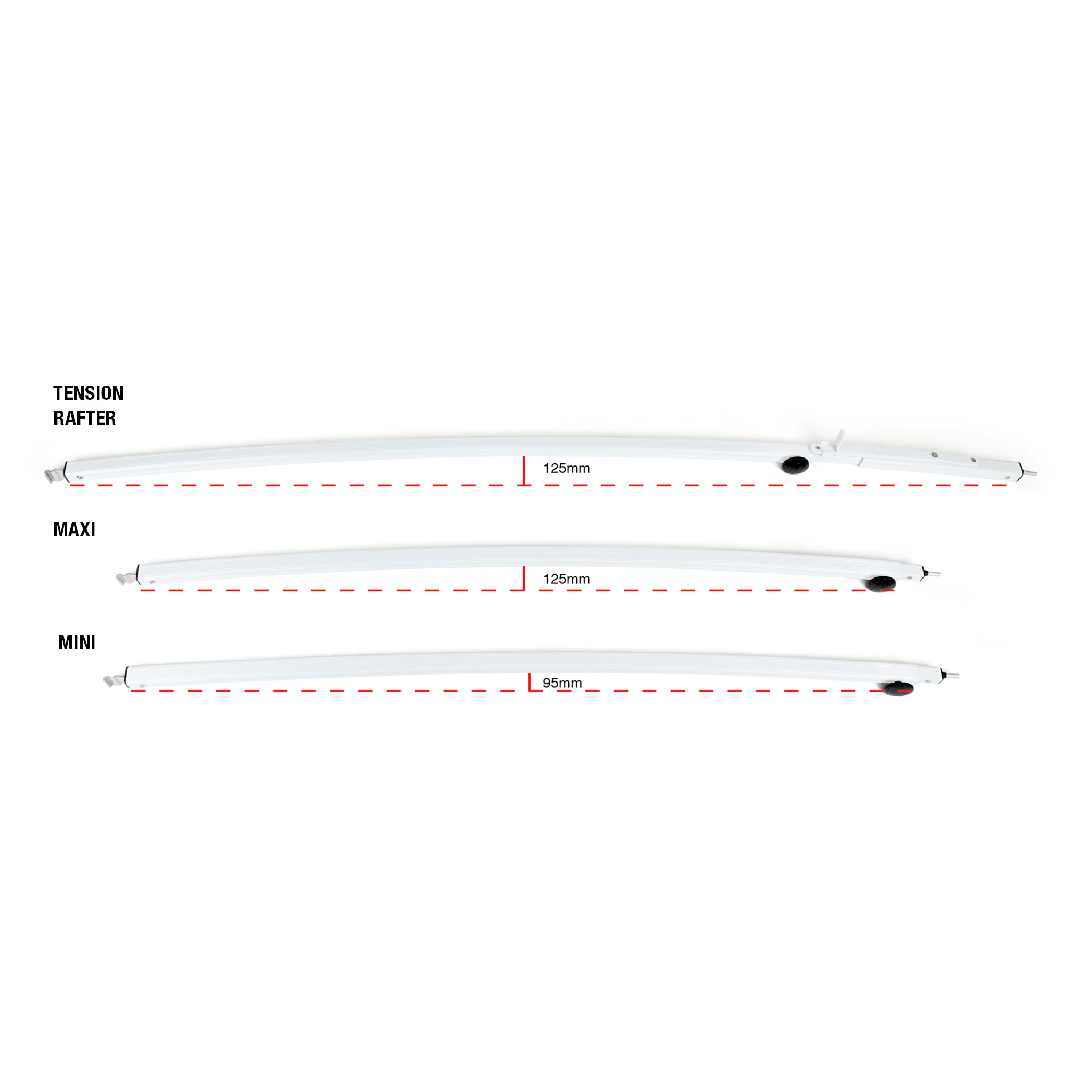

- Maxi Curve Rafter (#1)
123 - 125mm
Suitable for longer awnings on all vehicle types - Mini Curve Rafter (#2)
95 - 98mm
Suitable for awnings of all lengths on pop-top caravans, or for shorter awnings on all other vehicle types - Curved Tension Rafter (#3)
Suitable for longer awnings 18’ and over
Rollout Awning Size and Rafters Required:
- 11ft and under: 1 rafter
- 12ft: 1-2 rafters
- 13ft - 17ft: 2 rafters
- 18ft - 21ft: 3 rafters*
- 22ft and over: 4 rafters*
*We recommend substituting one of the Curved Roof Rafters with a Curved Tension Rafter for these longer lengths.
Cassette Awnings and Rafters Required:
- Only 1 Curved Roof Rafter is required regardless of awning length.
